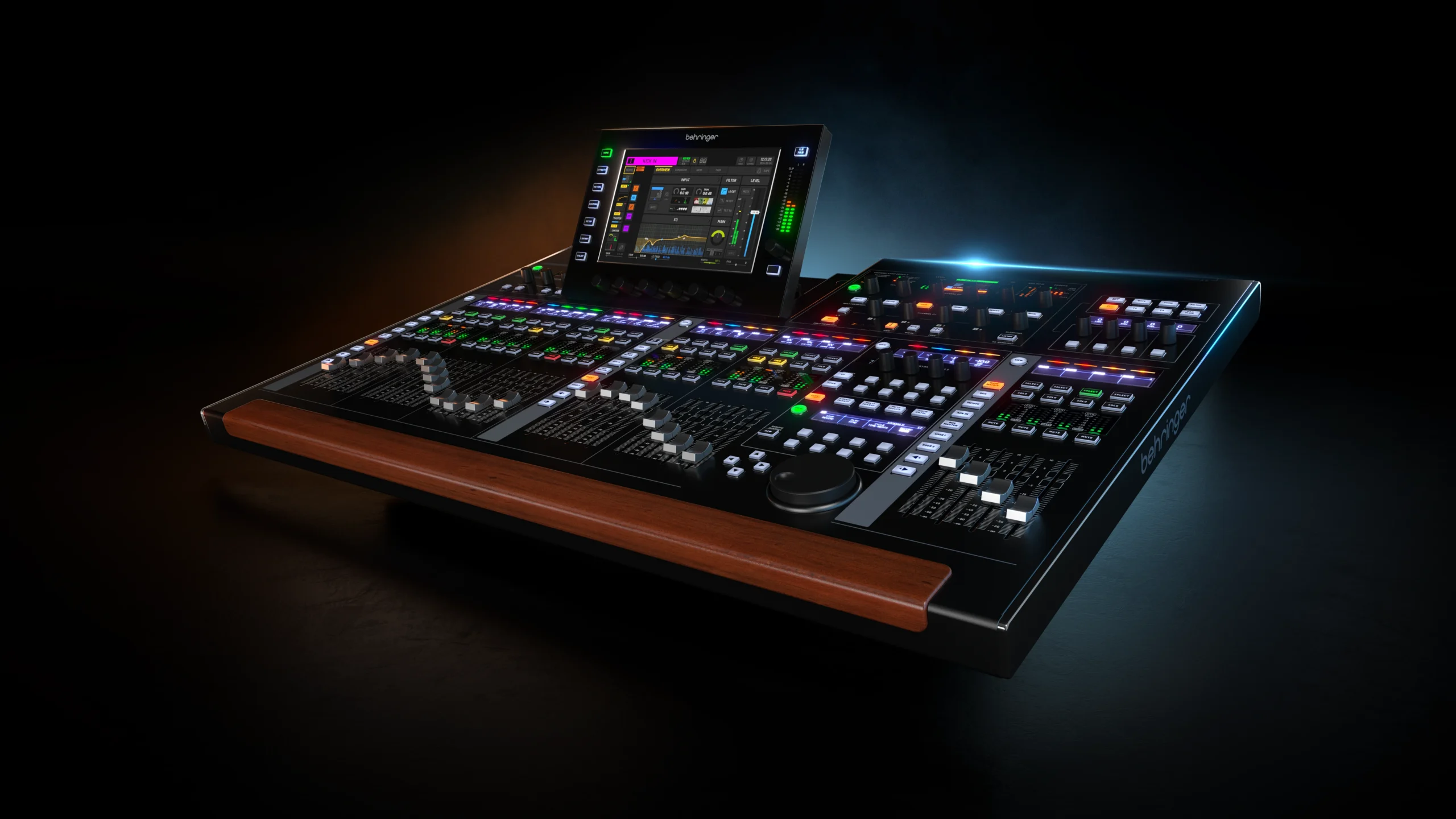

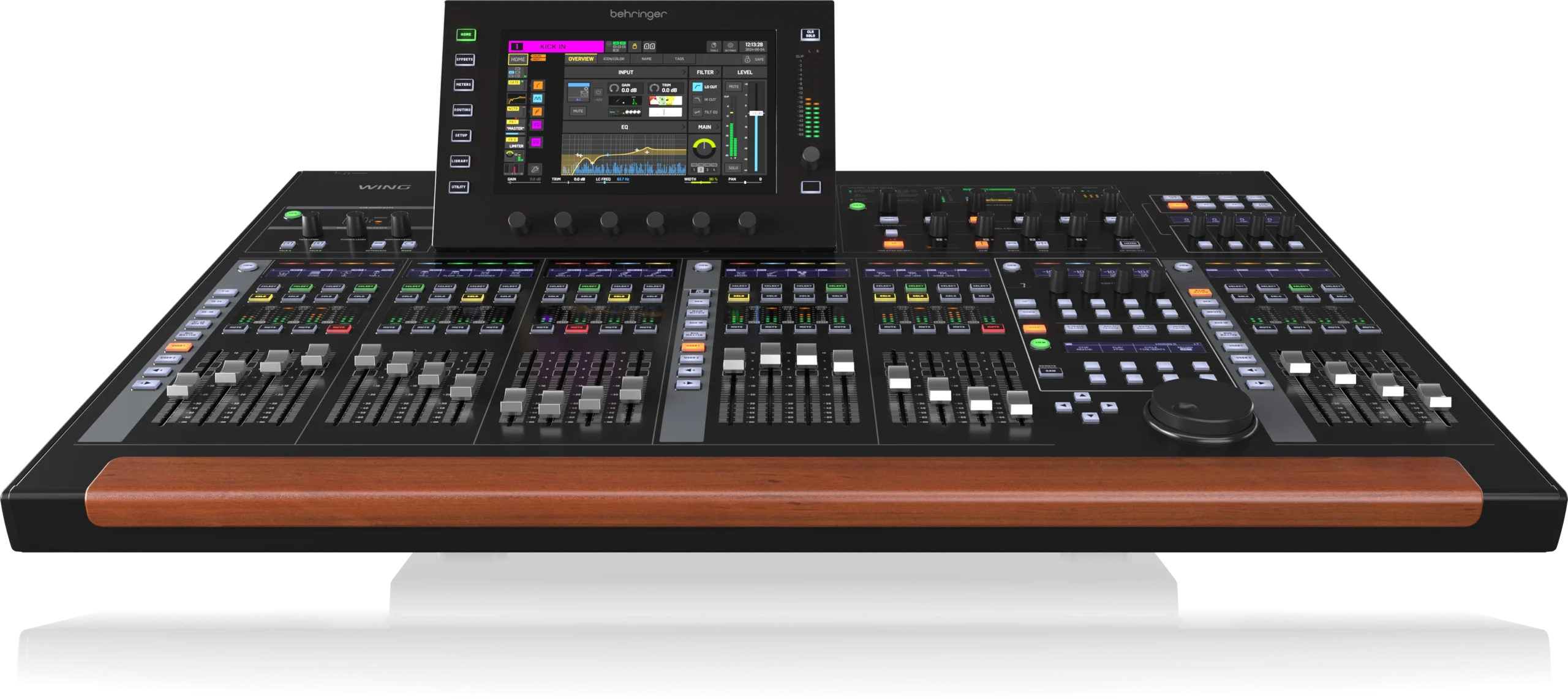

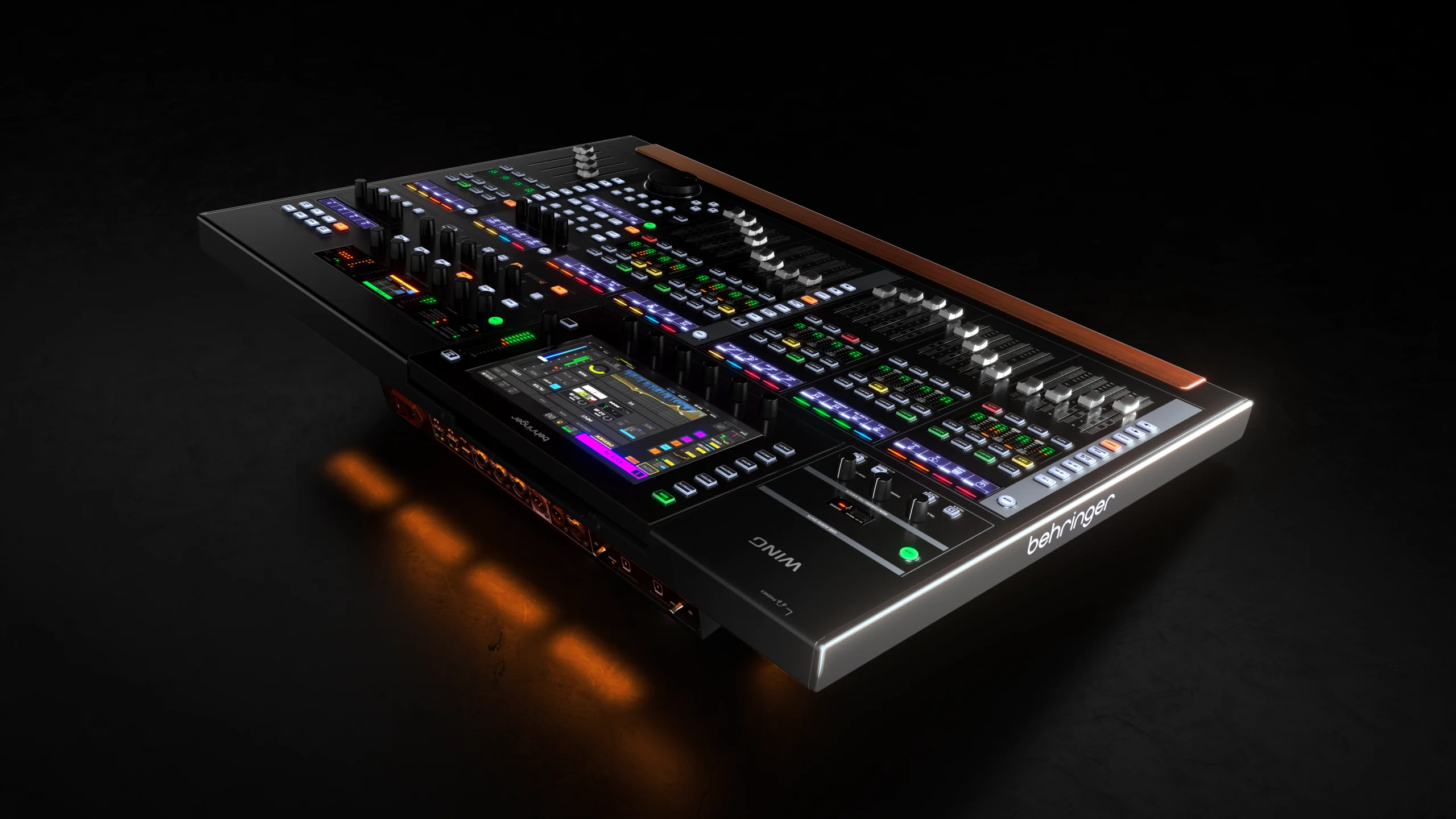

WING-BK
48-Channel, 28-Bus Full Stereo Digital Mixing Console with 8-Midas PRO Preamps, 8 Midas PRO Outputs, 10″ Touch Screen and 24-Fader Control Surface
About this product
48-Channel, 28-Bus Full Stereo Digital Mixing Console with 8-Midas PRO Preamps, 8 Midas PRO Outputs, 10″ Touch Screen and 24-Fader Control Surface
WING — THE FLAGSHIP DIGITAL MIXING CONSOLE FOR THE NEXT ERA OF LIVE SOUND
Why have leading touring engineers, premier broadcasters and the world’s most demanding theatre productions all chosen WING? Because WING isn’t an evolution of the digital mixer — it’s a fundamental rethink. A 48-channel, 28-bus, full-stereo console architecture built around 8 award-winning Midas PRO microphone preamps, 8 Midas PRO outputs, a 10-inch high-resolution multi-touch screen and 24 motorized 100 mm faders organized into three fully configurable sections that adapt to your workflow rather than forcing you into theirs.
The fully assignable channel architecture means every input is true stereo — pan, balance, width, M/S processing — without burning two channels per stereo source. The four 6 GHz DSP engines run StageCONNECT, AES50, AES3, USB and dedicated card slots simultaneously, with full 96 kHz internal processing throughout. Multi-bus routing, automatic mixer functionality, deep automation, and an open ecosystem of plug-ins make WING the most flexible flagship console at any price.
FLAGSHIP FEATURES
- 8 award-winning Midas PRO mic preamps and 8 Midas PRO outputs onboard
- 48 input channels, 28 buses, full-stereo signal path throughout
- 24 motorized 100 mm faders in three fully configurable sections
- 10-inch high-resolution multi-touch screen with deep gesture support
- StageCONNECT, AES50, AES3, USB and dedicated card-slot connectivity
- 96 kHz internal processing with multi-engine DSP architecture
From West End theatre to global broadcast, from arena tours to immersive installations — WING is the console that finally puts no-compromise sound, premium Midas preamps and a workflow built around the engineer at a price that rewrites the rules.
Features
- 8 award-winning Midas PRO mic preamps and 8 Midas PRO outputs onboard
- 24 motorized 100 mm faders in 3 separate, fully configurable sections
- “Plug and play” remote I/O connectivity for up to 144 input and output signals over 3 AES50 ports featuring Klark Teknik’s SuperMAC technology for ultra-low jitter and latency
- Large main display on an adjustable swivel, featuring the innovative touch optimized WING user interface
- Optional module for 64 x 64 channels of audio over Ethernet, supporting WAVES SoundGrid Technology or Dante/AES67 Technology
- 48 x 48 channel USB 2.0 audio interface onboard with DAW remote control emulating HUI and Mackie Control
- Dual-SD card live recorder/player with up to 64 tracks and markers for identifying song positions
- Premium FX rack with 8 true-stereo processors and world-class TC M3000 algorithms, Lexicon, Quantec and EMT emulations
- Standard FX rack with 8 true-stereo processors for a wide array of modulation, EQ, dynamics etc., also allows blending outboard effects to the mix
- 5 variable plug-in processing slots for all 40 stereo input channels, featuring the most iconic vintage analog equalizers and compressors, plus insert FX slot and 4-band parametric EQ for all 8 stereo aux channels
- 4 main, 8 matrix and 16 aux stereo buses, featuring dual inserts, 8-band parametric EQ’s, stereo imager and full dynamics processing
- 2 Ethernet ports with integrated switch for networked remote control and optional AoIP
- Built-in expansion port for optional audio interface cards or digital networking bridges, MADI and ADAT/WC

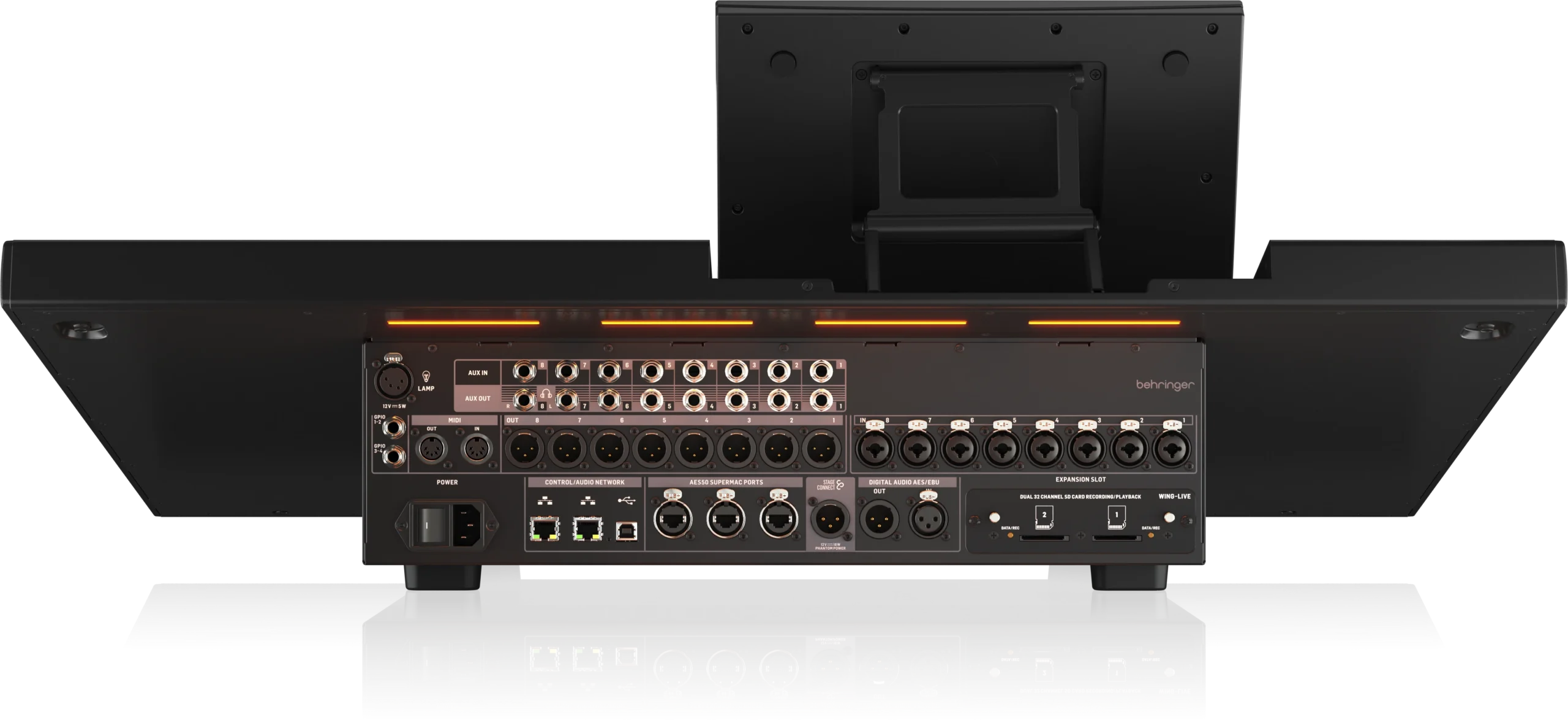

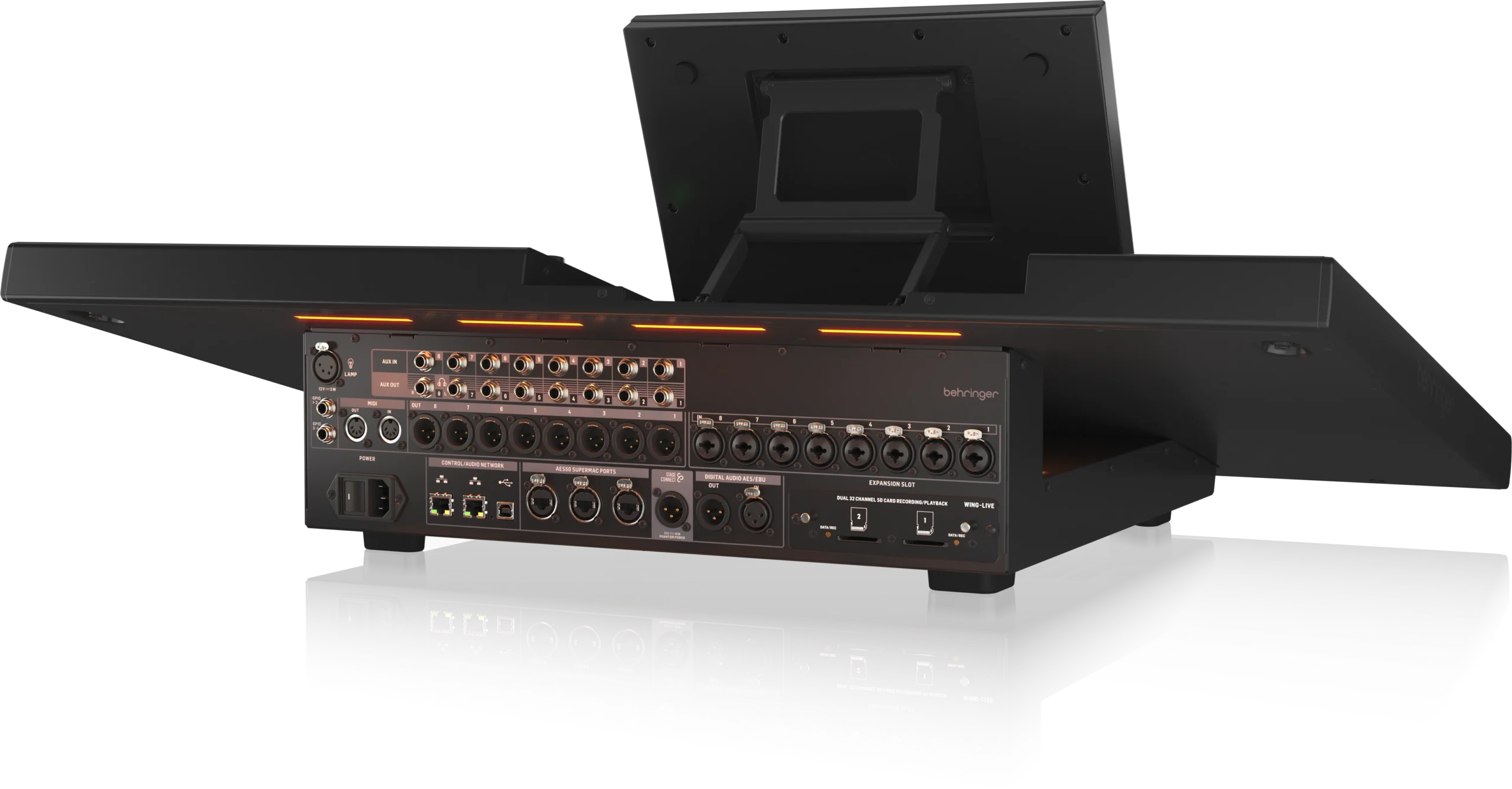

- StageCONNECT 32-channel low-latency interface for personal monitoring or analog I/O boxes, AES/EBU stereo digital in- and outputs on balanced XLR, 1 TRS phones connectors, MIDI I/O and 2 GPIO ports
- Custom Controls offering 16 latching or momentary buttons and 4 rotary controls, easily being configured for any preferred functions, plus one large control wheel
- Additional 4-channel control section with rotary controls, buttons and parameter display for permanent access to mains, matrices or “money-channels”
- Unique touch-sensitive channel editing section with 11 rotary controls and dedicated color TFT for staying on top of all channel properties
